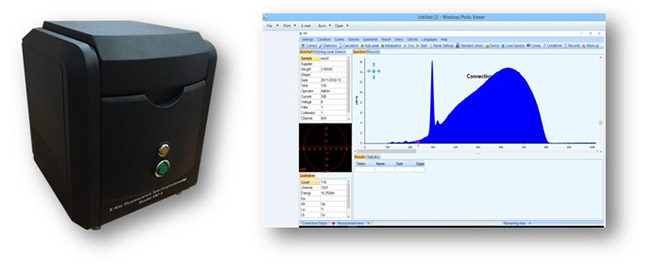

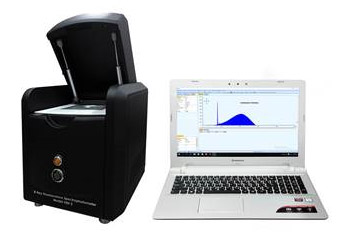

Benchtop Sulfur Analyser in Petroleum Products by
X-Ray Fluorescence Spectrophotometer Model XRF-S
Key Features:
- Benchtop design for on-site or lab use for Sulfur in Petroleum Products
- Small foot print with PC connection
- Complies with ASTM D4294, ISO8754, ISO20847 and IP336
- No sample preparation required
- The sample cup is designed of the same height, which ensures the measurement data to be accurate and saves the consumption of the standard sample and the gas.
- Small sealed helium gas sample chamber saves gas consumption and reduces test costs
- Shortest sample distance on top of detector improves test accuracy
- Rapid analysis with test result delivered within 50s at minimum
- Small quantity sample size without special handling tools
- High excitation efficiency side-window with W target X-ray tube
- Large area SDD detector, together with good dissipation capability ensure the high test stability
- X-ray radiation shielding design ensures operators safety during operation
- Easy to use software with both qualitative and quantitative analysis
Technical Specifications:
| Analysis: |
Sulfur in Diesel, Fuel Oil, Crude Oil |
| Analysis range: |
3 ppm - 99.99% |
| Test time: |
50 to 100 seconds |
| X-ray tube: |
50W X-ray tube, W target, 50kV, 1000µA |
| Filter: |
3 sets of filters, automatic switching |
| Detector: |
SDD |
| Limit of Detection: |
10 ppm / 3 ppm under the Helium purging condition |
| Sample Forms: |
Liquid |
| Sample cup volume: |
ø 24 mm×22 mm |
| Sample Volume: |
5 to10ml |
| Working temperature: |
10 to 35 °C |
| Relative humidity: |
< 70% |
| Voltage: |
220 VAC, 50 Hz |
| Instrument Dimension: |
370 mm×360 mm×418 mm |
| Weight: |
32 kg |
Scope of Delivery:
- Sealed Helium gas sample chamber
- SDD Detector
- Signal detection electric circuit
- X-ray tube
- High and low voltage power supply
- Open sample chamber
- Qualitative and Quantitative Analysis Software
- One set of PC with licensed Windows operation software
- Sample Cups, pack of 200 pcs

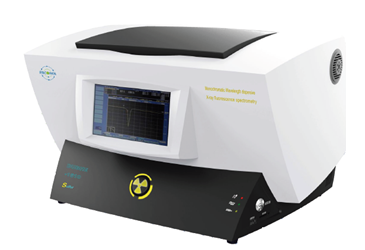

MONOCHROMATIC WDXRF
ULTRA-LOW SULFUR XRF SPECTROMETER
Model: Ultra-S
FEATURES AND BENEFITS
• HIGH SENSITIVITY AND ACCURACY
Johansson-type DCC system
Advanced design of beam path
• HIGH RELIABILITY
After first fine tuning in factory, appears never the optical path displacement, maximizing the reliability in long run.
• EXTREMELY LOW MAINTENANCE COSTS
No conversion gasses
No vacuum requirements
Self-aeration system.
• CONVENIENT DRIFT CORRECTION
No need to establish the working curves frequently.
• EASY OPERATION
Intuitive touch screen
Just plug-in and measure
Measurement time: 60~300s
APPLICATIONS:
• Total sulfur analysis from ultra-low sulfur gasoline to kerosene, diesel, lubricant, naphtha, and heavy fuels.
• Total sulfur analysis of ultra-low sulfur chemical products.
• For use in petrochemical industry, refinery labs, pipeline terminals, additive plants and inspection laboratories.
• Complies with ASTM D7039, EN ISO 20884, JISK2541-7

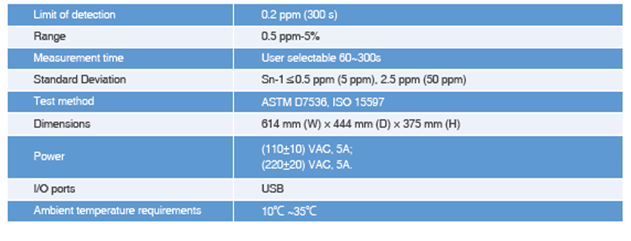

 Product Specifications
Limit of detection
1 0℃ ~35℃

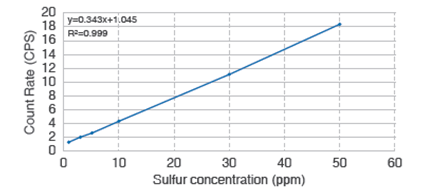

Calibration curve for low concentration

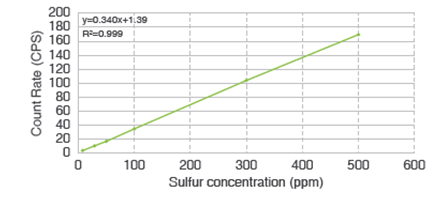

alibration curve for higher concentration

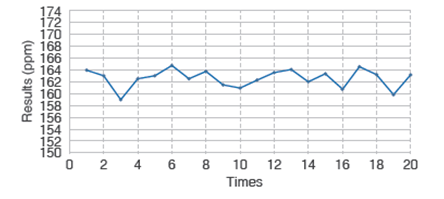

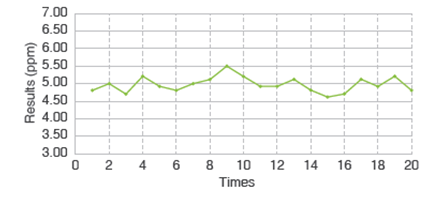

Results of sulfur in the same gasoline sample
RSD: 4.41%
Results of sulfur in the same diesel sample
RSD: 0.94%
|
